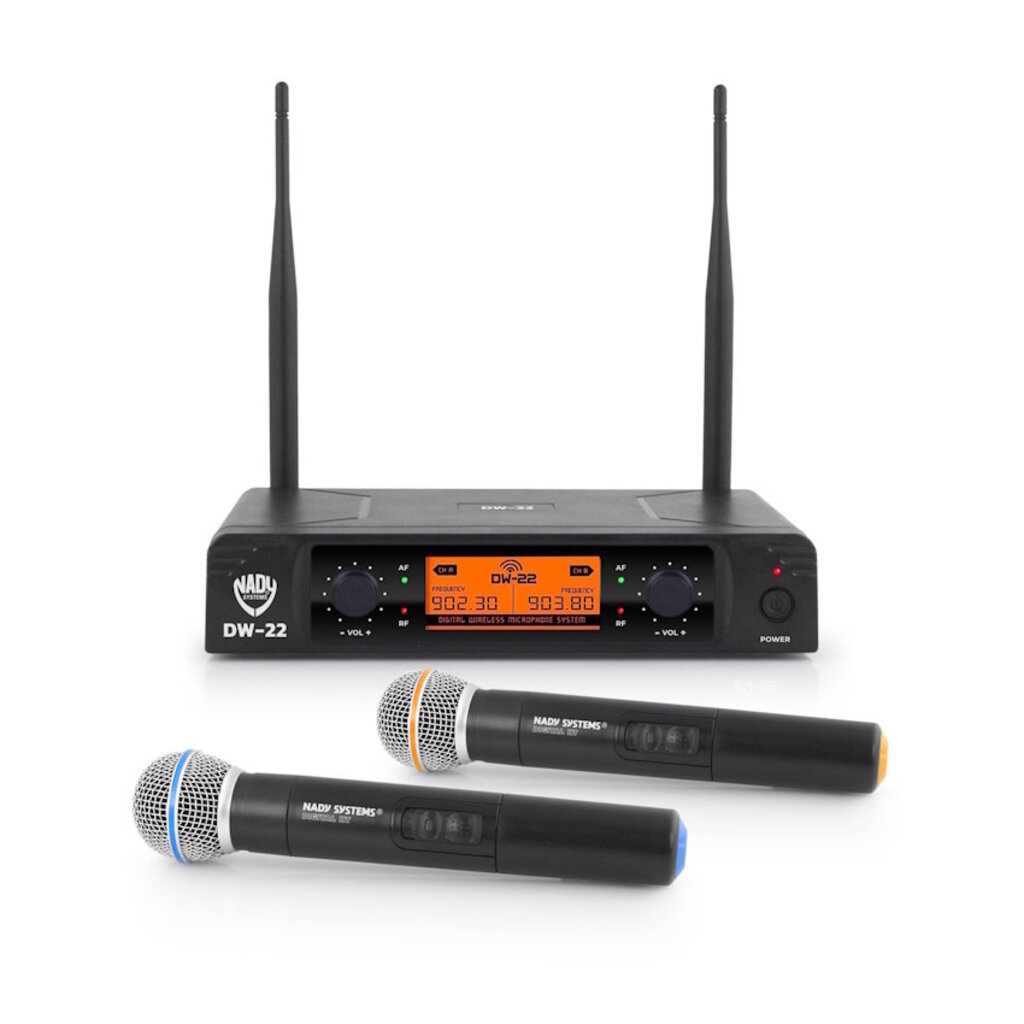

NEW Nady DW-22 Dual Handheld Digital Wireless Microphone System

The DW-22 operates at 902.3MHz / 903.8MHz (non-adjustable), plug and play set-up, and 300 ft. range. Complete with a handheld microphone or Lapel/Headset.

The DW is loaded with top professional operating features and offers the best performance and value available in digital wireless. With 48 kHz / 24-bit digital audio conversion, low latency and clear channel operation in the UHF 900MHz band, the Nady DW Series Digital Wireless Microphone System provides interference-free performance for any application.

This is a NON-Adjustable frequency system. To expand frequency ability, The DW-11 and DW-44 are compatible with this system.

OVERALL SYSTEM PERFORMANCE
Operating Frequency: 902.3 + 903.8MHz
Frequency Response: 20Hz ~ 20kHz ± 3dB
Dynamic Range: 120dB (A-weighted)
Total Harmonic Distortion: <0.1%
Latency: 3msec (48kHz Sample Rate)
RF Carrier Frequency Range: Selected frequencies between 902 and 951MHz
Frequency Stability: ± 20PPM, PLL controlled
Modulation: DQPSK
Operating Range: Up to 300 ft. typical (depending on site conditions); optimum line-of-sight

RECEIVER
Reception: External 7.25” (18.5cm) attached antenna
Receiver Sensitivity: -94dBm
Controls: Power ON/OFF, Volume Control
Connectors: 1/4” (6.35 mm) unbalanced phone jack (360 mV/ no load) / XLR balanced output (±12 mV/600Ω load)
LED Indicators: Power ON, RF/AF LEDs
Unwanted Signal Rejection: 60dB image and spurious
Power Requirements: DC 13.5V Regulated @ 400mA
Weight and Dimensions: 0.75lbs (340g) 8” x 6” x 1.75” (203 x 152 x 44mm)

DIGITAL HT™ TRANSMITTER
RF Power Out: +13dBm, (50mW maximum allowed by FCC)
RF Spurious Emissions: <–50 dB
LED Indicator: Unit on (single flash), Low Battery Alert (red)
Battery Type: 2 AA Alkaline
Battery Life: Up to 11 Hours
Audio Input: Integral neodymium dynamic cartridge
Controls: Power switch
Weight and Dimensions: 0.6lbs (272g) / 9.25”(L) x 2”(dia.)

DIGITAL LT™ TRANSMITTER
RF Power Out: +13dBm, (50mW maximum allowed by FCC)
RF Spurious Emissions: <–50 dB
Audio Inputs: 1/8″ (3.5 mm) locking mini-jack, for headworn or lapel mic
Weight and Dimensions: 0.15lbs (68g) / 2.5″x 4.25″x 0.5″
Battery Type: 2x AA Alkaline
Battery Life: Up to 11 Hours
