This is the exact guitar you'll receive! Only removed from original packaging for inspection/photos.
Weight (SN US240024840) - 7lbs 10.5oz

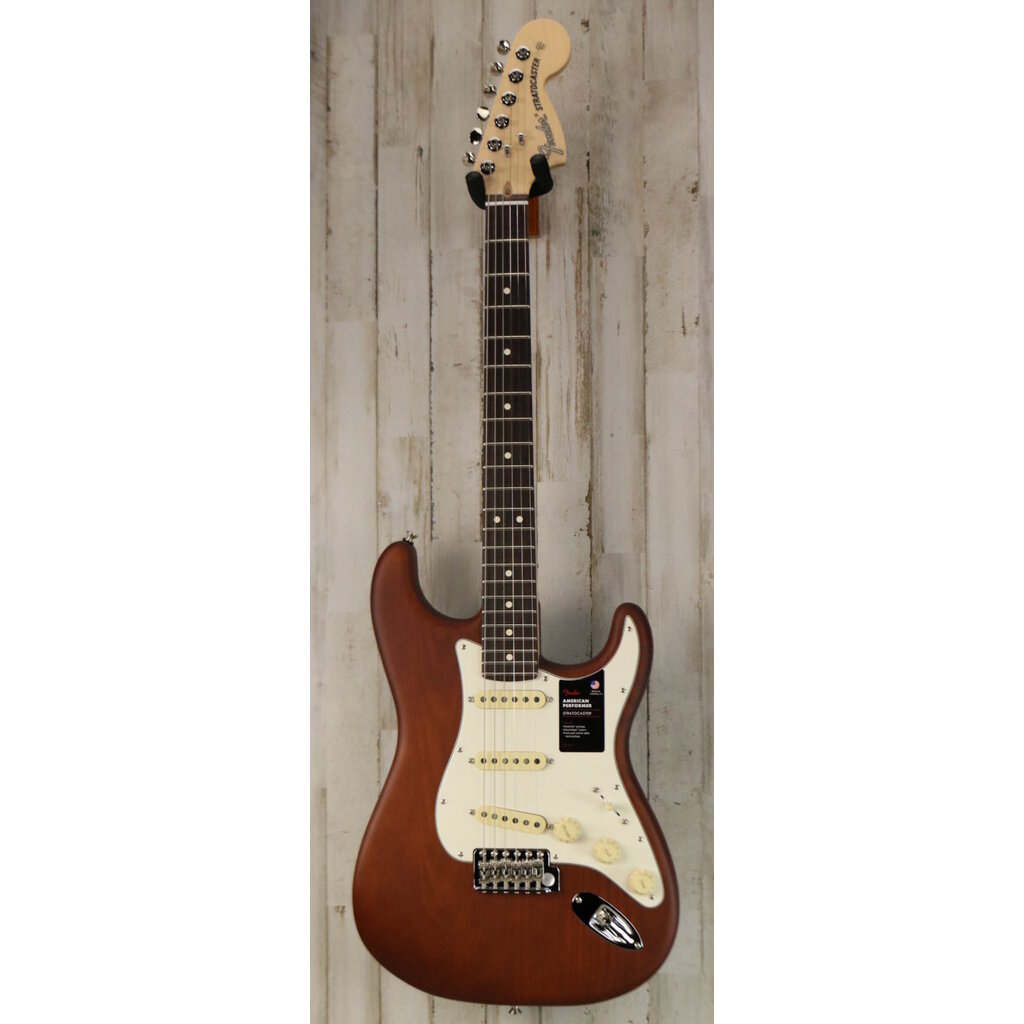

Born in Corona, California, the Limited Edition American Performer Timber Stratocaster delivers the exceptional tone and feel you expect from an authentic Fender.
This guitar features a trio of Yosemite™ single-coil pickups, designed for rich, expressive tones. With flat-staggered pole pieces to increase output and a shellac coating that lets the coil breathe while controlling feedback, Yosemite pickups produce dynamic sounds ideal for any musical situation. A push-pull tone control adds the neck pickup in any switch position, unlocking new, musically useful tones. The “Modern C”- shaped neck sports a 9.5”-radius fingerboard that’s comfortable for almost any playing style, along with 22 jumbo frets for effortless and accurate bending.
General
SERIES: American Performer
ORIENTATION: Right-Hand
COLOR: Mocha
COUNTRY OF ORIGIN: US
Neck
NECK MATERIAL: Maple
NECK FINISH: Satin Urethane
NECK SHAPE: Modern "C"
NECK CONSTRUCTION: 4-Bolt
FINGERBOARD RADIUS: 9.5" (241 mm)
FINGERBOARD MATERIAL: Rosewood
POSITION INLAYS: White Dot
SIDE DOTS: White
NUMBER OF FRETS: 22
TRUSS ROD: Standard
TRUSS ROD NUT: 1/8" American Series
STRING NUT: Synthetic Bone
NUT WIDTH: 1.685" (42.8 mm)
NUT MATERIAL: Synthetic Bone
Body

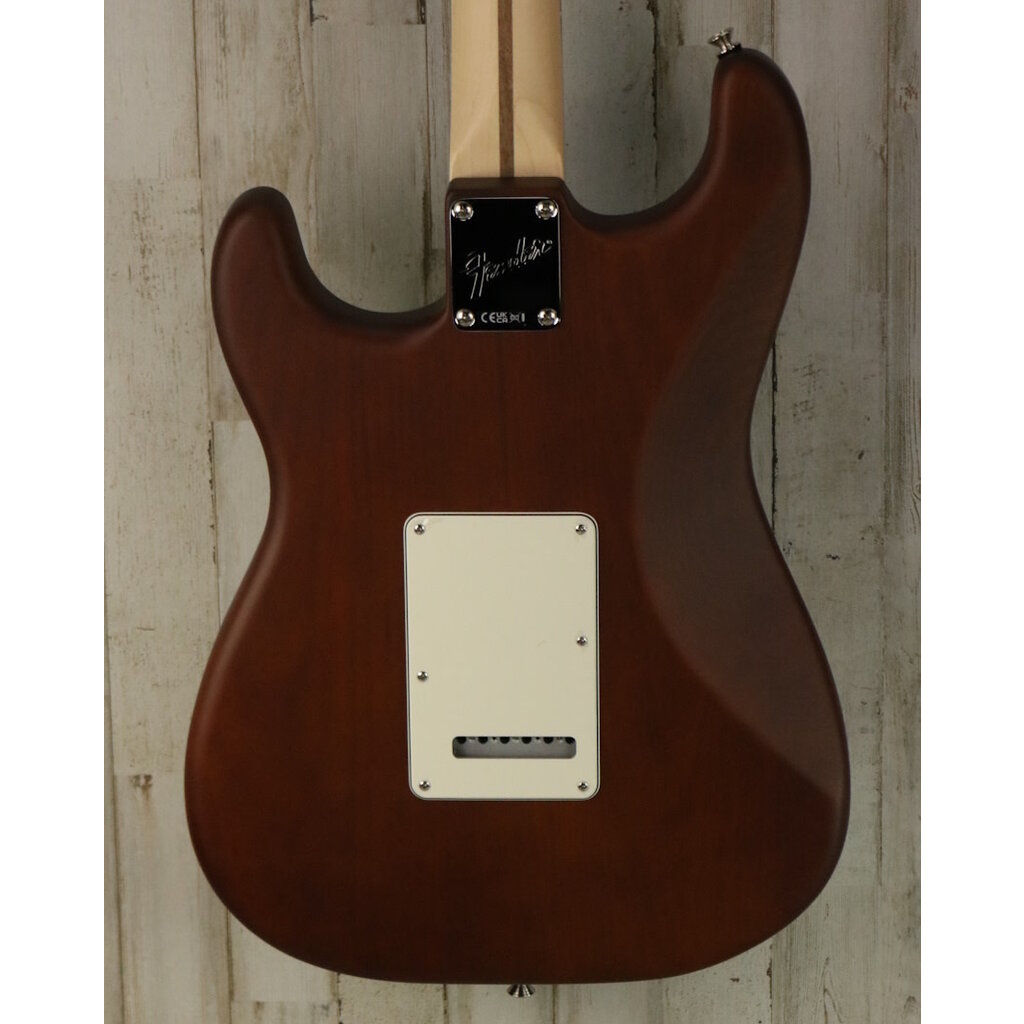

BODY: Sassafras
BODY FINISH: Satin Urethane
BODY SHAPE: Stratocaster®
BODY STYLE: Solid Body
BODY MATERIAL: Sassafras
Hardware
BRIDGE: 6-Saddle Vintage-Style Synchronized Tremolo
BRIDGE MOUNTING: 6-Screw Vintage-Style
PICKGUARD: 3-Ply Parchment
PICKUP COVERS: Aged White
CONTROL KNOBS: Aged White Plastic
SWITCH TIP: Aged White
HARDWARE FINISH: Nickel/Chrome

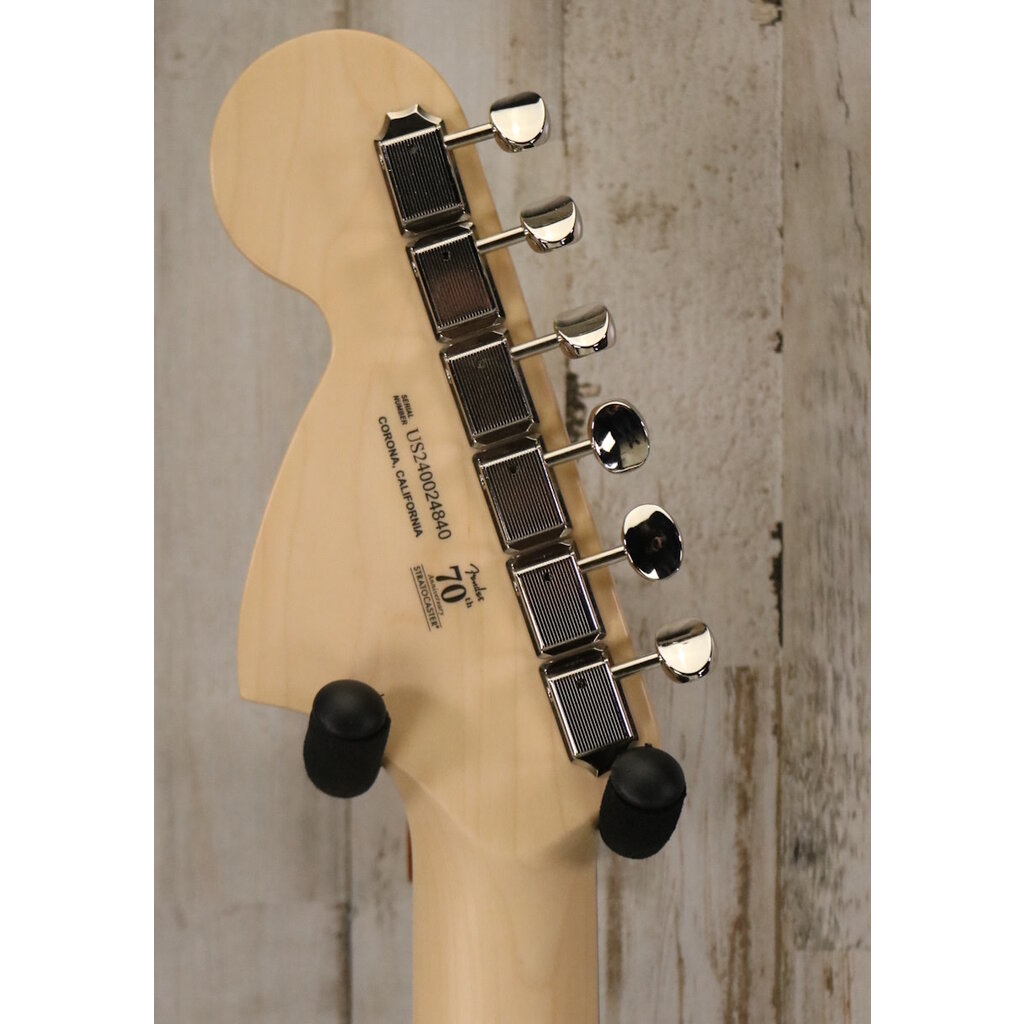

TUNING MACHINES: Fender® ClassicGear™
STRING TREES: Dual-Wing
STRINGS: Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
NECK PLATE: 4-Bolt
STRAP BUTTONS: Vintage-Style
Electronics
BRIDGE PICKUP: Yosemite® Single-Coil Stratocaster®
MIDDLE PICKUP: Yosemite® Single-Coil Stratocaster®
NECK PICKUP: Yosemite® Single-Coil Stratocaster®
PICKUP CONFIGURATION: SSS
CONTROLS: Master Volume, Tone 1. (Neck & Middle Pickup), Tone 2. Greasebucket™ Tone Circuit (Bridge Pickup)
SWITCHING: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
AUXILIARY SWITCHING: Push/Pull Switch On Tone 2 Adds Neck Pickup
SPECIAL ELECTRONICS: Push/Pull Switch up on Tone 2 adds Neck Pickup in Parallel For Positions 1 and 2
Measurements
FRET SIZE: Jumbo
SCALE LENGTH: 25.5" (64.77 cm)
Accessories
RECOMMENDED CASE: Classic Series Stratocaster®/Telecaster® Wood Hardshell Case, P/N 0996106306 (Not Included)
SADDLE HEIGHT WRENCH: .050" Hex (Allen) Wrench
TRUSS ROD WRENCH: 1/8" Hex (Allen)
