CloseThis amp is in great condition, but has been used and shows some light wear. There are a few scuffs and stray knicks here and there on the tolex, as well as a small area on the front panel of the amp where some sticker residue has been left behind that could use a quick cleanup. Original footswitch included, but does not come with a cover.
The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone, but at a more affordable price. Evolving from the revered EVH 5150III® amplifiers, the Iconic Series delivers the searing sound and growling gain that Eddie Van Halen made famous throughout his groundbreaking career.
Designed by renowned amp engineer, James Brown, the 5150® Iconic® Series 40-watt 1x12 combo is powered by two 6L6 power tubes and voiced by a complex, multi-stage hybrid preamp section anchored by a duet of ECC83 tubes providing all the fire power the modern guitarist needs. The cabinet is constructed out of MDF with special internal plywood baffling for tight and increased bass response, and houses a custom designed EVH 12" Celestion® speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.
Punching above its weight, this combo features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel's burn button adds fiery crunch that's ideal for blistering leads.
Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The channel two noise gate's quick attack suppresses any hiss while ensuring all staccato riffing is articulate and crisp, not choked and choppy. The Boost control allows you to add another 10Db of foot-switchable volume to your tone - perfect for ensuring your solos cut through the mix. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.

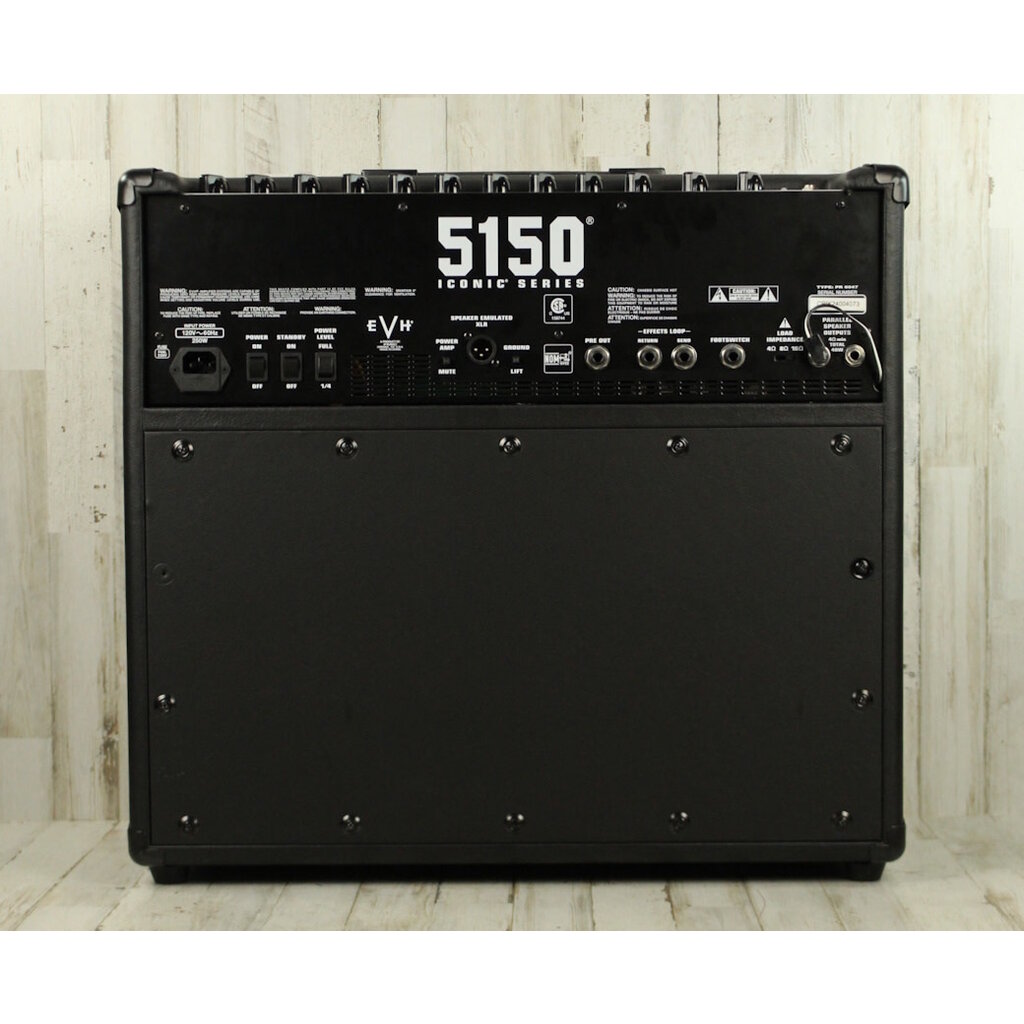

Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks, ¼ power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without destroying your neighbor's solitude, and a speaker-emulated DI XLR with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system.
General
SERIES: 5150® Iconic®
COLOR: Black
AMPLIFIER TYPE: Tube
COUNTRY OF ORIGIN: CN
Electronics
CONTROLS: Channel 1: Gain w/ Overdrive Switch; Channel 2 Gain w/ Burn Switch; Noise Gate Channel 2: Low, Mid, High EQ; Channel 1/ Channel 2 Volume, Master Boost, Global Reverb, Resonance, and Presence
CONTROL PANEL: Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Noise Gate (Channel 2); Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Master Boost; Global Reverb, Resonance and Presence
INPUTS: One - 1/4"
HEADPHONE JACK: None
LINE OUT: Two - (One XLR and One 1/4")
CHANNELS: Two - Clean/Overdrive and Lead/Burn
EFFECTS: Reverb
EFFECTS LOOP: 1/4" (Send/Return)
CONNECTION TYPE: 1/4"
VOLTAGE: 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
WATTAGE: 40 Watts
Hardware
CONTROL KNOBS: Black Chicken-Head Style Pointer
AMPLIFIER COVERING: Black Textured Vinyl
CABINET MATERIAL: MDF w/ Plywood Baffle
GRILLE CLOTH: Black
HANDLE: Molded Plastic Strap with Black Powder Coated Caps
SPEAKER JACK: Two - 1/4" Parallel
FRONT PANEL: Brushed Aluminum
Speakers
SPEAKERS: One - 12" EVH® Celestion® Custom
SPEAKER WATTAGE: 40 Watts
TOTAL IMPEDANCE: 4, 8, or 16 ohms
Tubes
POWER TUBES: 2 x 6L6
PREAMP TUBES: 2 x ECC83S
RECTIFIER: Solid State
Measurements
PRODUCT DEPTH: 11.25" (28.57 cm)
PRODUCT HEIGHT: 21" (53.34 cm)
PRODUCT WIDTH: 22.5" (57.15 cm)
POWER TUBES: 2 x 6L6
Accessories
FOOTSWITCH: 2-Button Footswitch Included
Miscellaneous
UNIQUE FEATURES: 1/4 Power Level Switch
POWER CABLE: IEC
