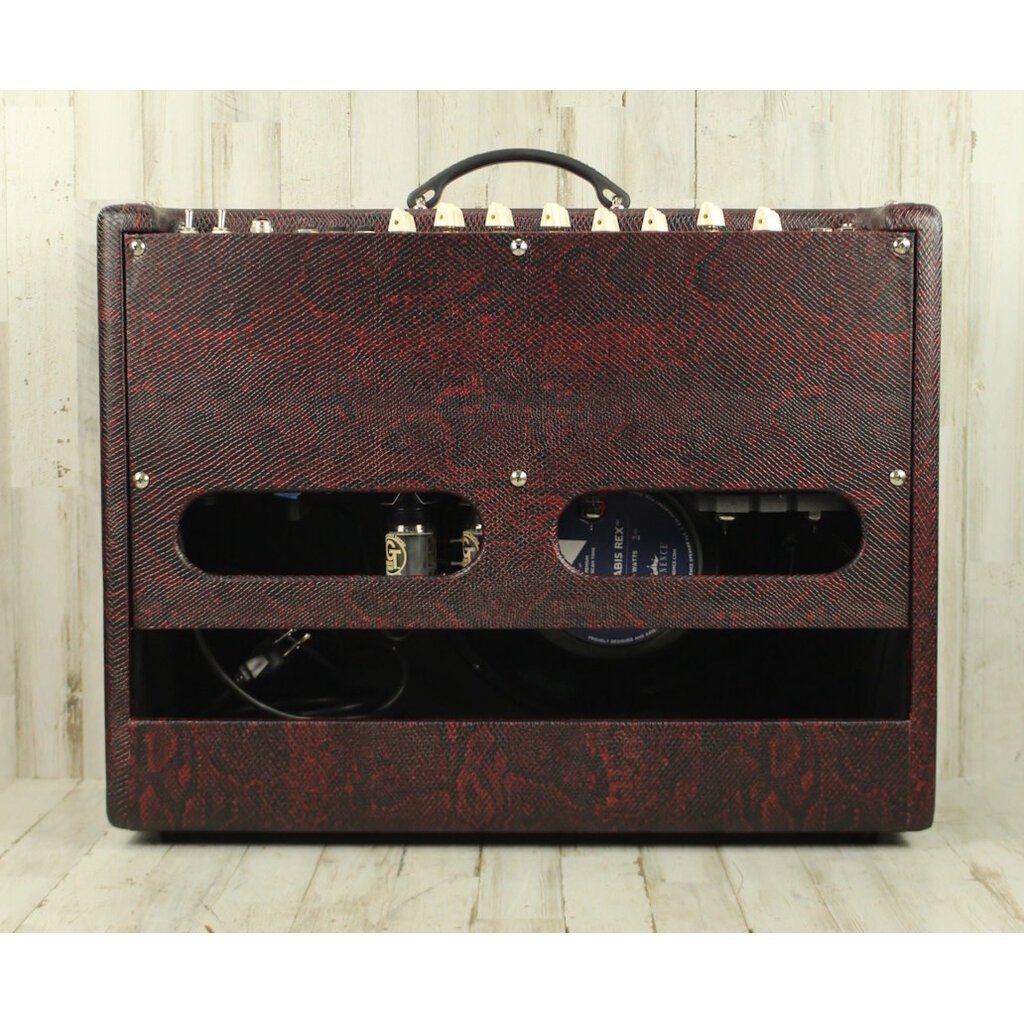

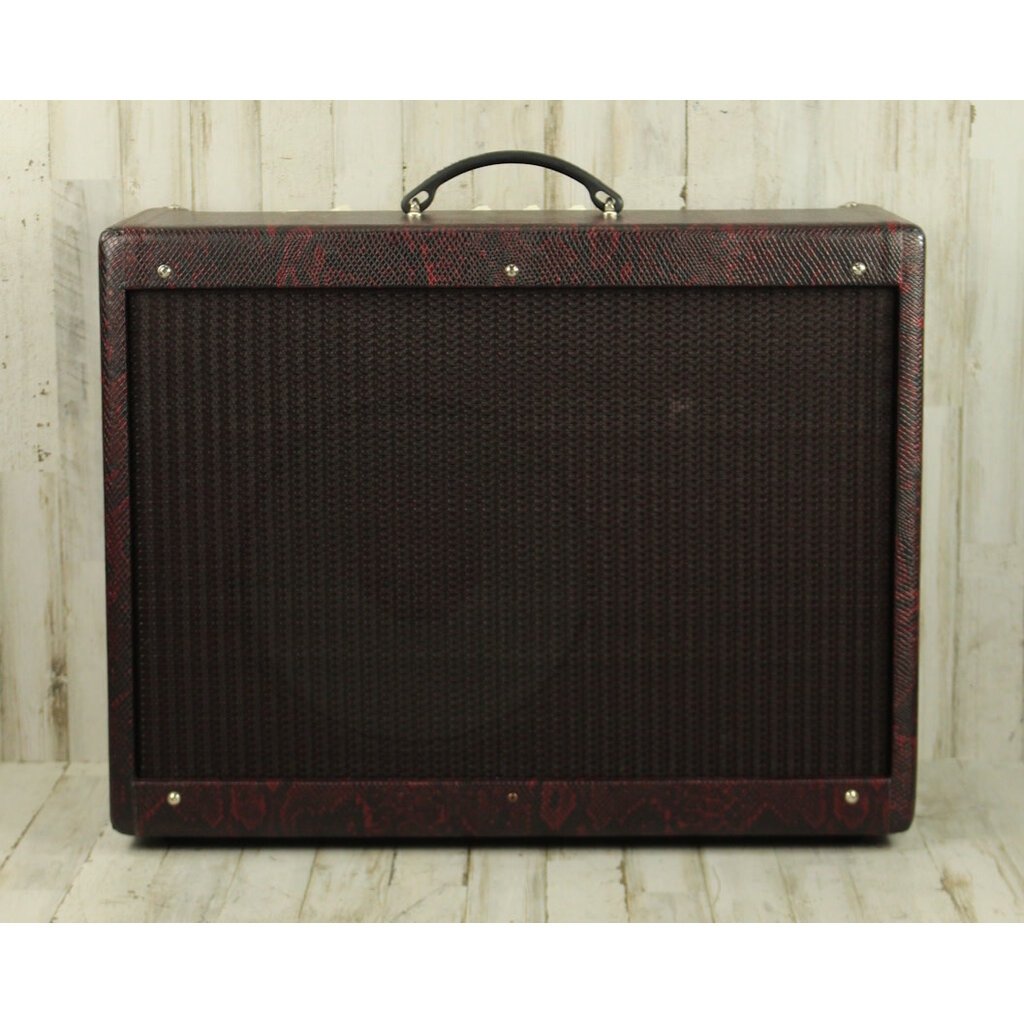

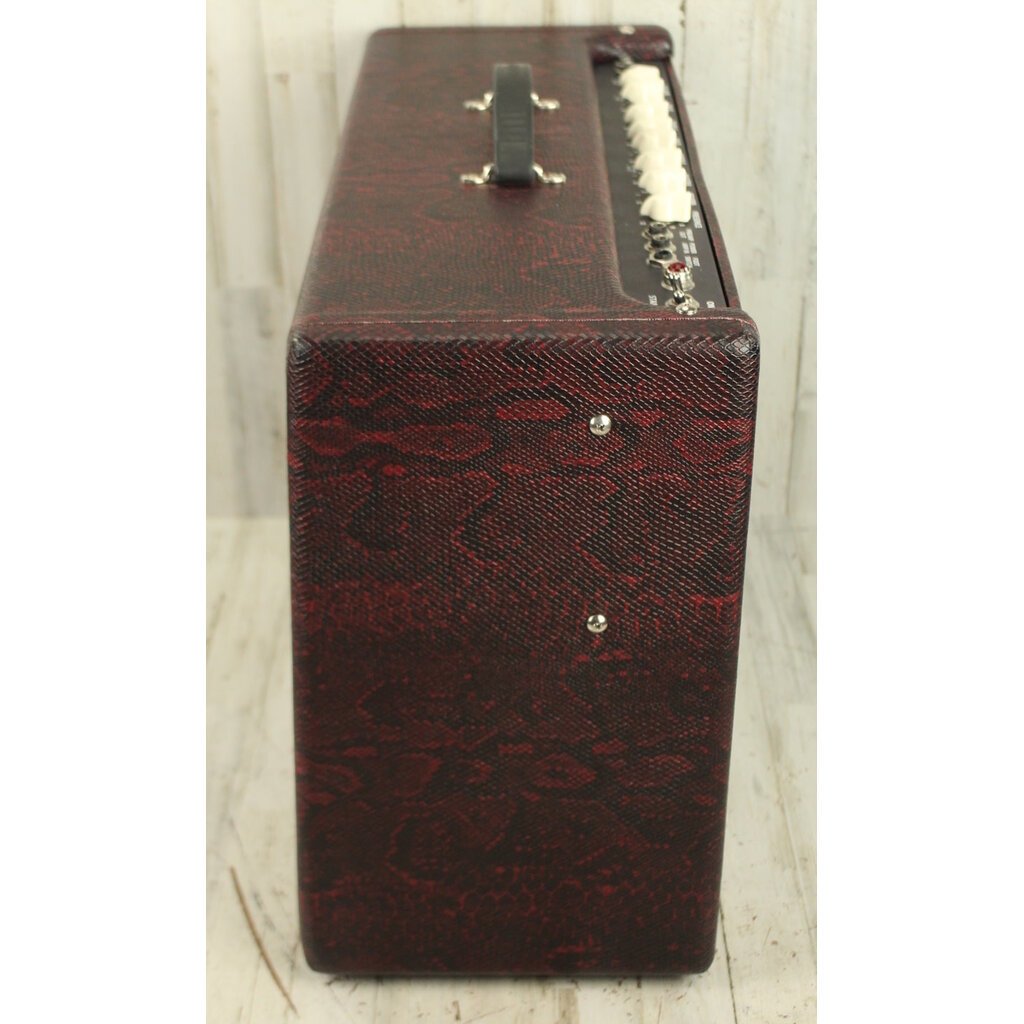

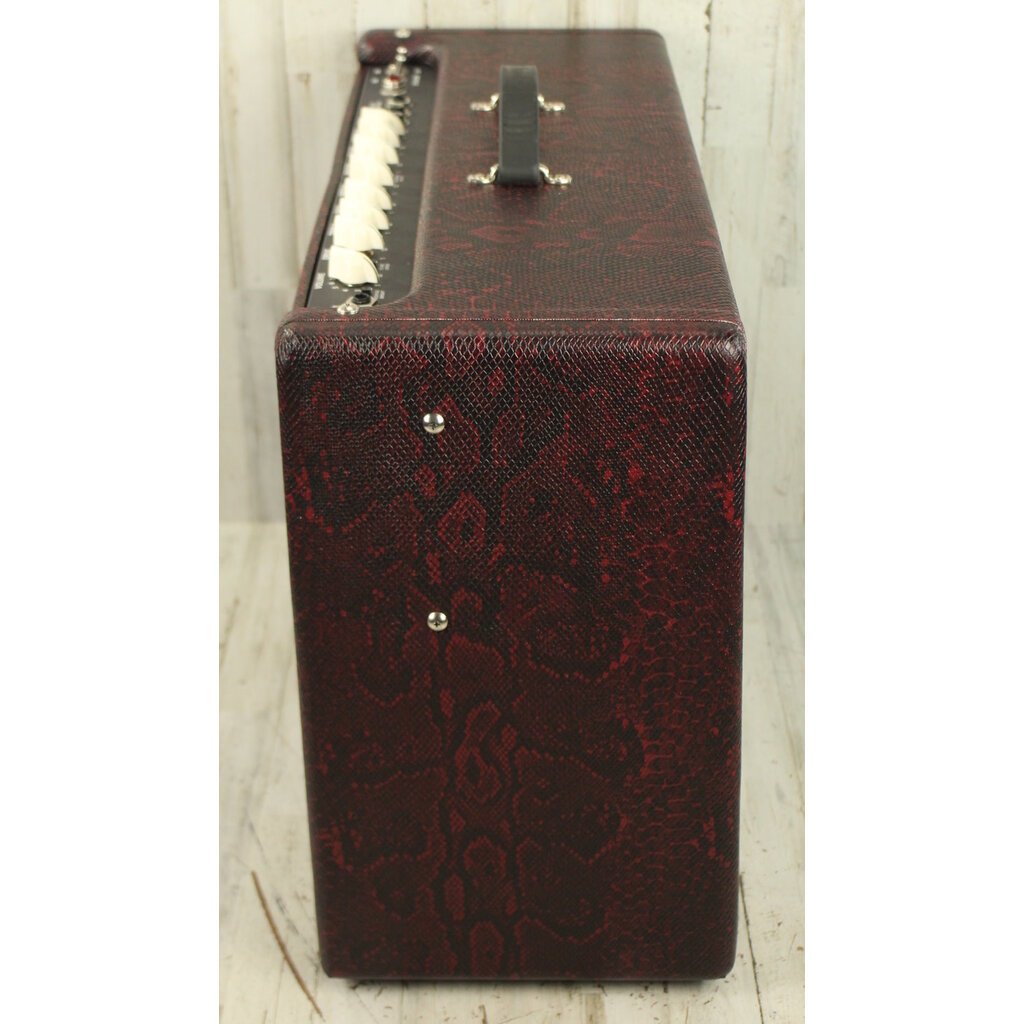

CloseThis amp has been recovered with Red Snakeskin tolex, has had a black control panel decal added over the original chrome, and has had all of the original badging removed. This amp is in great condition with only some light examples of wear. There are a few light scuffs on the tolex here and there, and there is a bit of dust in the nooks and crannies that could use a quick cleanup, but solid condition overall. This amplifier has also had an Eminence Cannabis Rex speaker installed. Original speaker not included. Original footswitch and cover not included.
The world standard for a portable, powerful, full-featured tube amp, the 40-watt Hot Rod Deluxe™ is very aptly named, indeed! Awe inspiring Fender® tone issues forth from a 12" 8-ohm Fender® Special Design Eminence® speaker fueled by a pair of 6L6 Groove Tube® output tubes and three 12AX7 preamp tubes. You get three channels, "normal", "drive" and "more drive" with gain and master controls for the "drive" channel and a "bright" switch for the "normal" channel. Other features include FX loop, Fender® long-spring reverb, external speaker jack, internal variable bias control, two-button three-function channel footswitch, chrome panel with vintage pointer knobs, black textured vinyl covering and silver grille cloth.
General
SERIES: Hot Rod
AMPLIFIER TYPE: Tube
COUNTRY OF ORIGIN: MX
PLATFORM: Archived
Electronics
CONTROLS: Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
CONTROL PANEL: Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
INPUTS: Two - (1/4", Input 2 operates at -6dB)
CHANNELS: Three - Selectable (Normal, Drive and More Drive)
EFFECTS LOOP: 1/4" - (Preamp Out, Power Amp In)
VOLTAGE: 120V
WATTAGE: 40 Watts
Hardware
CONTROL KNOBS: Chicken-Head Style Pointer - Black
AMPLIFIER COVERING: Black Textured Vinyl
CABINET MATERIAL: 13-Ply Birch/Maple Plywood
GRILLE CLOTH: Silver
HANDLE: Molded Rubber "Dog Bone" Style
AMPLIFIER JEWEL: Red Jewel
SPEAKER JACK: Two 1/4" Parallel (Internal and External)
FRONT PANEL: Chrome
Speakers
SPEAKERS: One - 12"
TOTAL IMPEDANCE: 8 ohms
Tubes
POWER TUBES: 2 x 6L6
PREAMP TUBES: Groove Tubes® - (3 x 12AX7)
RECTIFIER: Solid State
Measurements
PRODUCT DEPTH: 10.4375" (265 mm)
PRODUCT HEIGHT: 18.75" (47.6 cm)
PRODUCT WIDTH: 23.5" (59.7 cm)
POWER TUBES: 2 x 6L6
