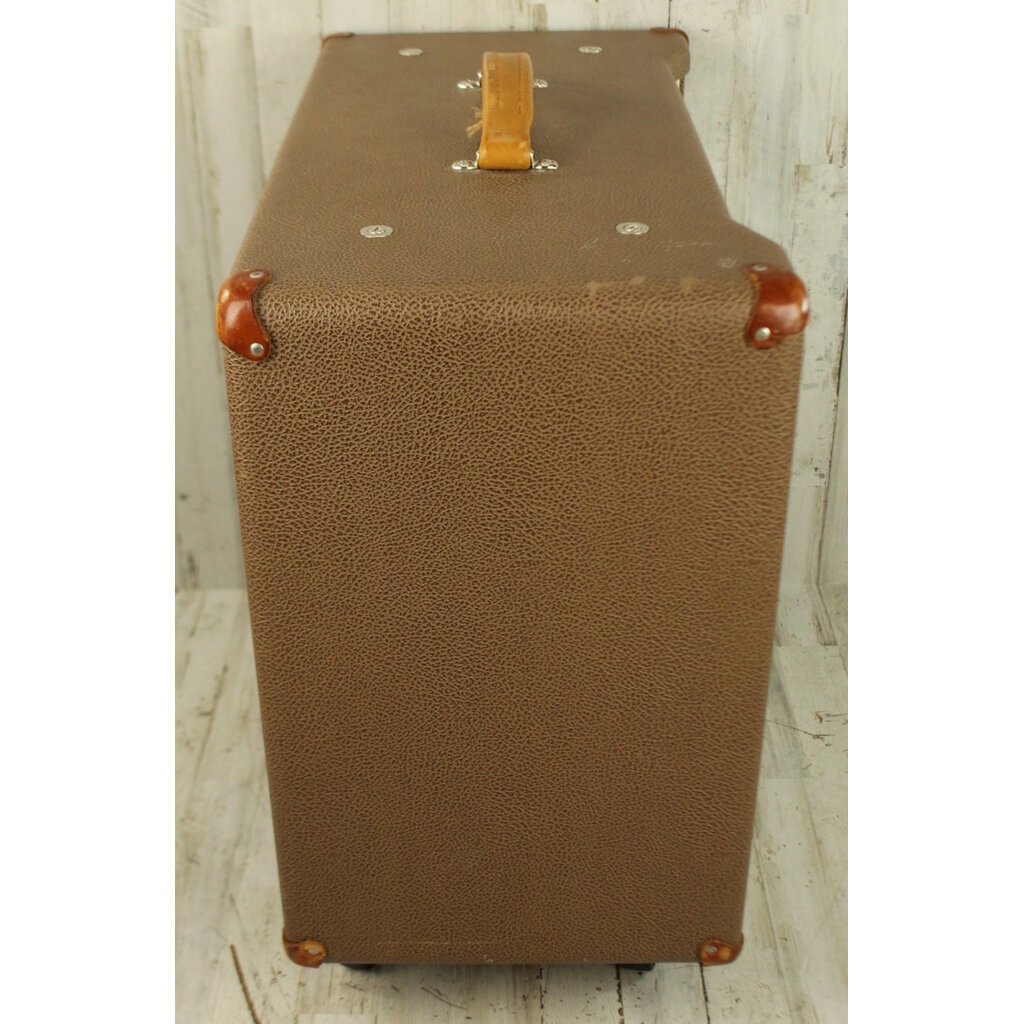

CloseThis amp is in good condition, but has been used and shows a few signs of wear. Most notably, this amplifier has a handful of scratches and scuffs in the tolex, along with some areas where the brown tolex has darkened up a bit, and the inside of the amp is a little dusty and could use a quick cleanup, but solid condition otherwise. Original footswitch included, but does not come with a cover.
Build Location: Hand-Wired In Petaluma, CA with the World's Finest Materials
Wattage: Multi-Watt™ 5, 15 or 30 (Channel Assignable)
Power Tube: Type 4x Mesa EL84
Channels & Modes: 2 Channels / 3 Modes
Mode Voicings / Styles: Ch. 1 = Clean, Ch. 2 = Clean or Drive (Mesa's Vintage Cascading Gain)
Graphic EQ / Reverb / FX / Solo: Reverb, FX Loop & Solo
Footswitchable Functions: Ch. 1/2 & Solo
Speaker(s) & Impedance: 1 - 8 Ohm Celestion Custom 90 / Total Load = 8 Ohms
Weight 59 Lbs.
Dimensions 19 1/4" H x 22 7/8" W x 11 3/4" D
Amplifier Features
Amp Type: Tube
Chassis Material: Aluminum
Rectifier Type: Dual Rectification with Patented Recto Tracking™ (Patent 7,193,458). Recto Tracking auto-matches the correct Rectifier compliment for the number of Power Tubes in use. 5 & 15 Watt Modes = Tube Rectification, 30 Watt Mode = Silicon Diode Rectification.
Rectifier Tubes: 1x Mesa 5Y3
Preamp Tubes: 5x Mesa 12AX7
Power Amp Tubes: 4x Mesa EL-84
Maintenance Free Fixed Bias: Cathode Bias (maintenance free)
Wattage(s) Quick Reference: 5, 15 or 30 Watts - Channel Assignable
Power Amp Details (Class & Wattage): Pure Class A Power with Mesa's Patented Multi-Watt™ (Patent 7,602,927) Channel Assignable Power Amp - Provides three power options via two 5/15/30 Watt Power Switches: Choose 1 power tube operating in pure vintage Class A (single-ended), producing 5 Watts - 2 tubes running in pure Class A, Push-Pull, producing 15 Watts or 4 tubes operating in Pure Class A Push-Pull, producing 30 Watts
Convection or Fan Cooling: Fan Cooled with On/Off Switch
Number of Footswitchable Channels (or Modes): Two Channels
Number of Style Modes: Three
Number of Style Modes Per Channel: Ch. 1 = One / Ch. 2 = Two
Types of Style Modes Per Channel: Ch. 1 = Clean, Ch. 2 = Clean or Drive (Mesa's Vintage Cascading Gain)
Channel Controls: Each Channel features Independent 5/15/30 Watt Multi-Watt™ Switch, Gain, Treble, Mid, Bass, Presence, Reverb (back panel) & Master - Channel 2 features additional Drive Mode Switch with Drive Level Control and Thick/Normal/Thicker Voicing Switch
Reverb / Effects & Bypass Options: All-Tube, Long Spring Reverb with Bright/Warm Tone Switch and Independent Channel Controls
Effects Loop & Bypass Options: Fully Buffered Series FX Loop w/Send Level Control (over all channels when activated) - True Bypassable
Global Output Level Control: Yes (Over all channels when activated)
Global Solo Level Control & Bypassable Options: Yes (Over each channel when activated)
True-Bypass Options: True-Bypass Switch removes FX Loop, Output & Solo Level Controls
External Switching Jack Options and/or Midi: External Switching Jacks for Channel 1/2, Solo (back panel) & Reverb (bottom of chassis)
Speaker Outputs: One 8 Ohm and Two 4 Ohm
Slave Output: Yes with Level Control
