Fender Custom Shop Nocaster® guitars

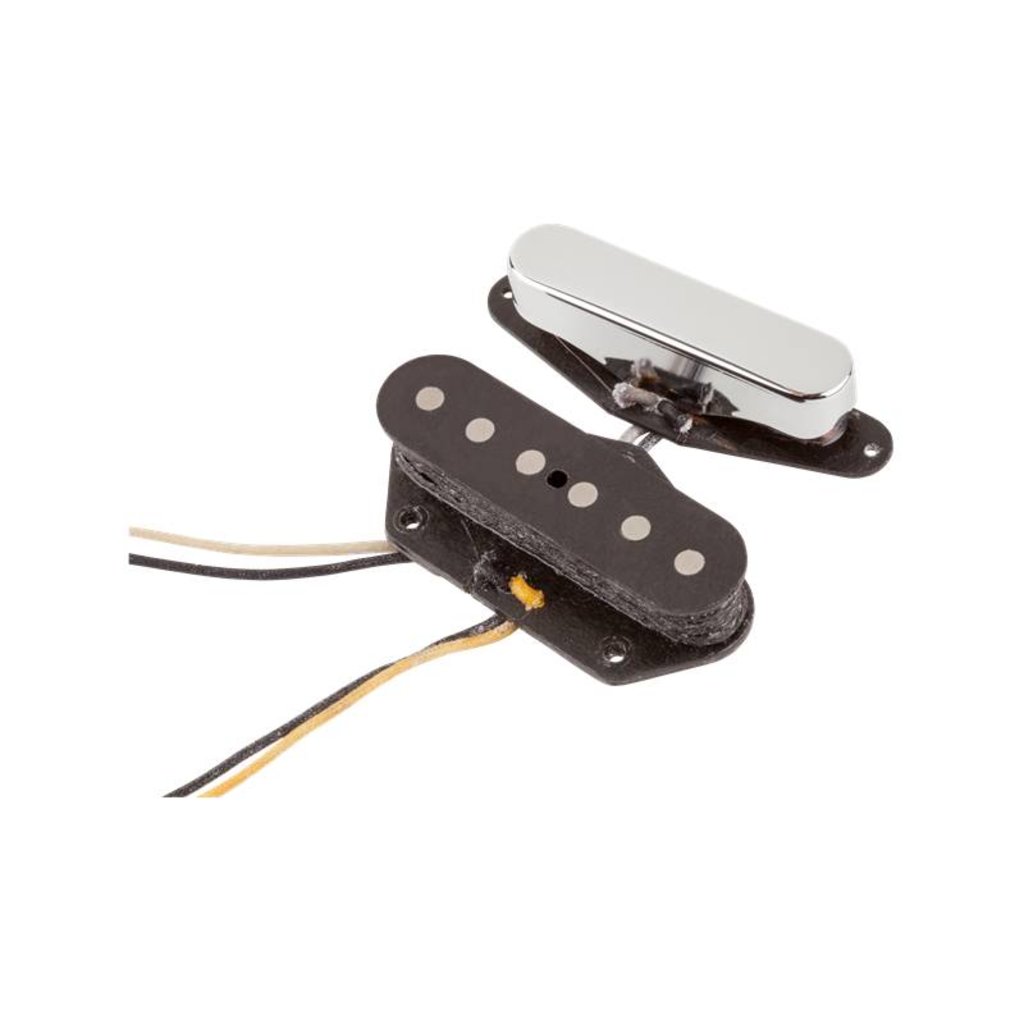

Fender Nocaster pickups are true to their heritage; created with the original design in mind to accurately mimic the twang and shimmer of the original Nocaster guitar. These period-correct single-coil pickups impart tight low end and clear, balanced midrange.
Tonal Characteristics
Enamel-coated magnet wire delivers warm vintage-style tones
Flush-mount magnets produce even response across every string
Alnico 3 magnets produce prominent midrange and tight, focused bass
Tin-plated copper base plate livens up tone with added bite
Product Detail
Period-correct cloth output wire and fiber bobbin construction
Available with black bridge-pickup cover and nickel neck-pickup cover

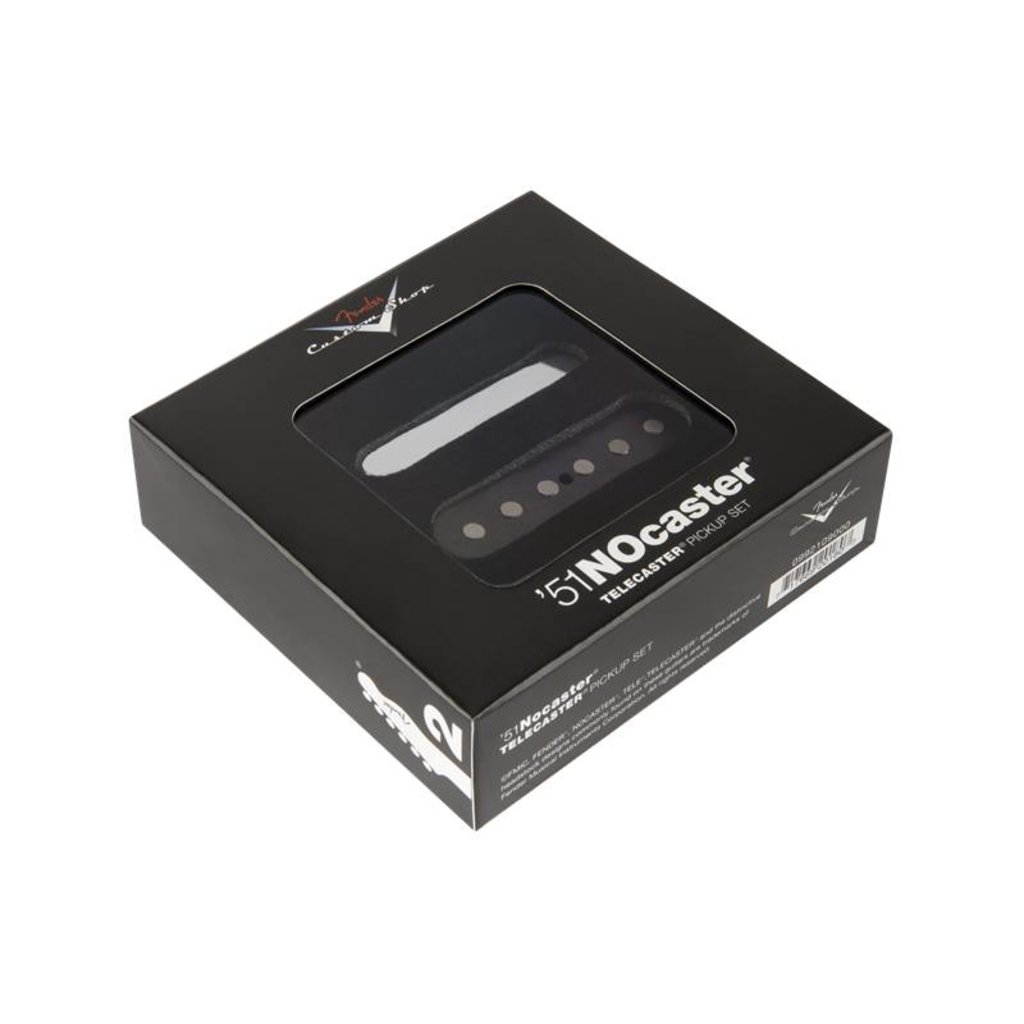

Included Components
Fender Custom Shop ’51 Nocaster Tele pickups come with all parts needed for installation, including:
Mounting screws
Pickup height adjustment tubing
Wiring diagram

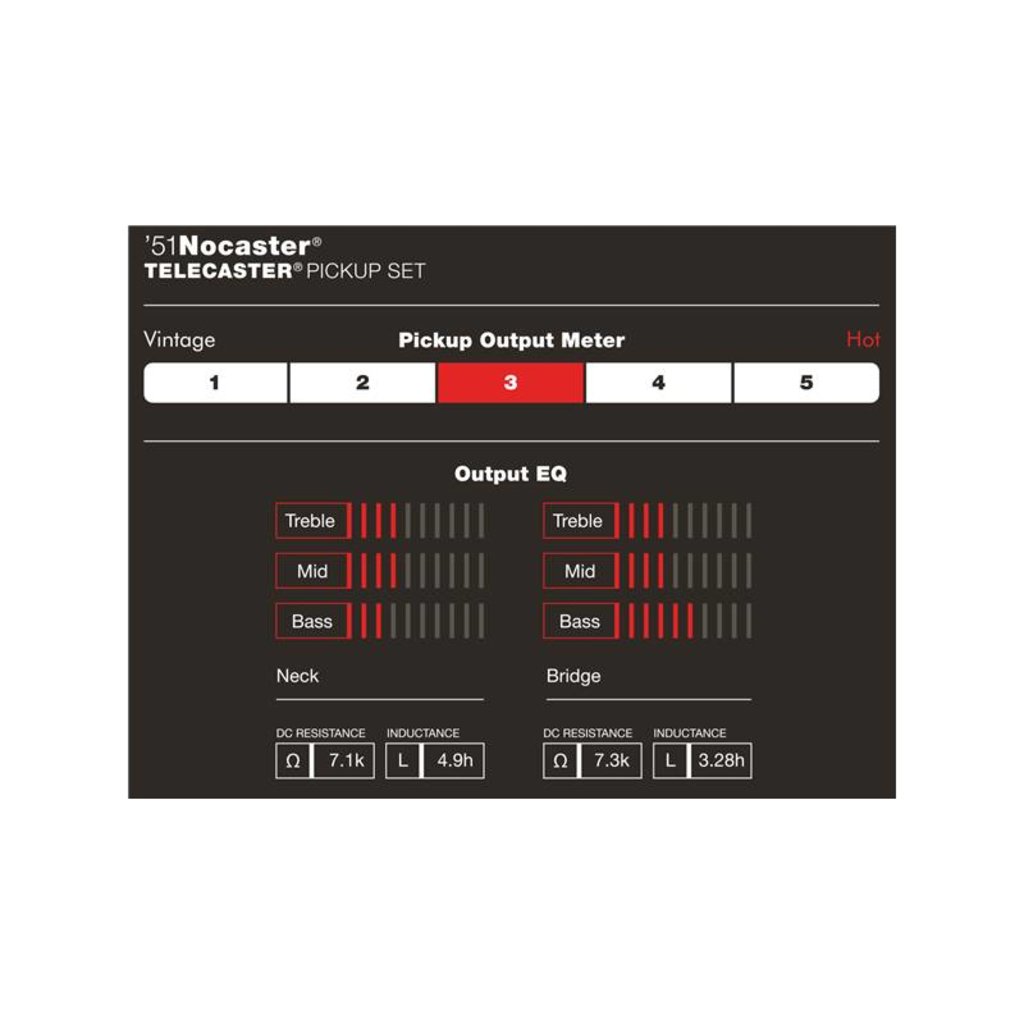

Output Rating (Bass/Mid/Treble)
Neck: 3/4/4
Bridge: 6/4/4
Other Specifications
DC Resistance
Neck: 7.1k ohms
Bridge: 7.3k ohms
Inductance
Neck: 2.35 henries
Bridge: 3.7 henries
